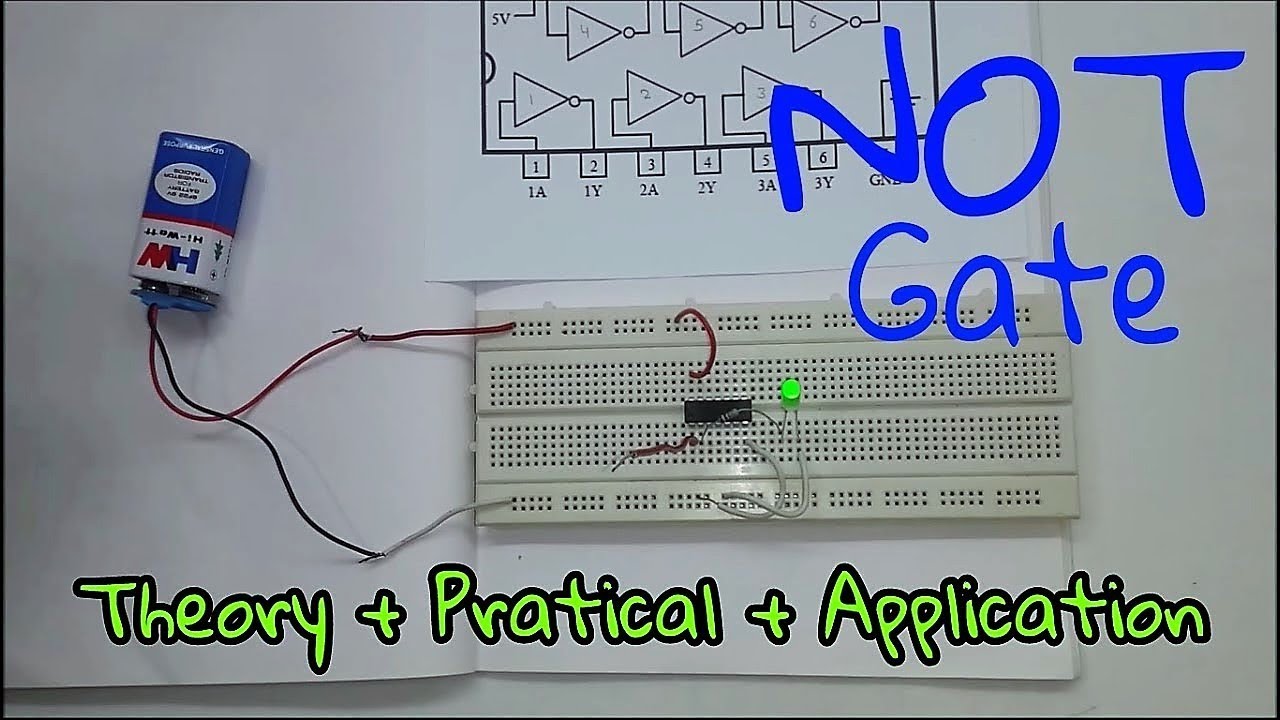

Practical Application Of Logic Gates Logic Gates NAND Gate Theory Practical Application In Hindi Logic Gates AND Gate Theory Practical Application In Hindi Logic Gates XOR Gate Theory Practical Application In Hindi Logic Gates NOT Gate Theory Practical Application In Hindi Optical Logic Gates In Future Computers EurekAlert Logic gates We send information through computers using wires that represent 1s and 0s Computers need a way to manipulate those 1s and 0s so that they can eventually do more complicated operations like calculating the 50th digit of Computers use logic gates to transform the 1s and 0s from input wires

Since the inputs and outputs of logic gates are just wires carrying on off signals logic gates can be wired together by connecting outputs from some gates to inputs of other gates The result is a logic circuit An example is also shown in Figure 1 3 The logic circuit in the figure has three inputs labeled A B and C 1 Introduction Logic gates are essential components of digital electronic networks They are frequently used in automation circuits For example a secured electronic lock may be controlled using the circuit given in Fig 10 1 Fig 10 1 Circuit diagram for a secured electronic lock Full size image

Optical Logic Gates In Future Computers EurekAlert Logic Gates Demonstration Kit 5 Steps with Pictures Instructables Application Of Logic Gates YouTube Solved Figure Shows An Application Of Logic Gates That Chegg OR Gate In Digital Electronics Or Gate Applications Or Gate Ic PDF LOGIC GATES DIFFERENT TYPES OF PDF FileDIFFERENT TYPES OF LOGIC Logic Gates OR YouTube Analog Basic Logic Gates And Logic Gate School Project At Rs 699 piece Logic Gates Basics YouTube

An OR logic gate works this way with two electrical inputs If either input is switched on that is carries a number 1 the output will be 1 as well Otherwise the output will be 0 In electronics we represent an OR gate with a different symbol Three ways in which it can work are shown beneath

Pre-crafted templates provide a time-saving service for creating a varied variety of files and files. These pre-designed formats and designs can be made use of for different individual and professional jobs, including resumes, invites, flyers, newsletters, reports, discussions, and more, simplifying the material development procedure.

Practical Application Of Logic Gates

Logic Gates 6 Steps Instructables

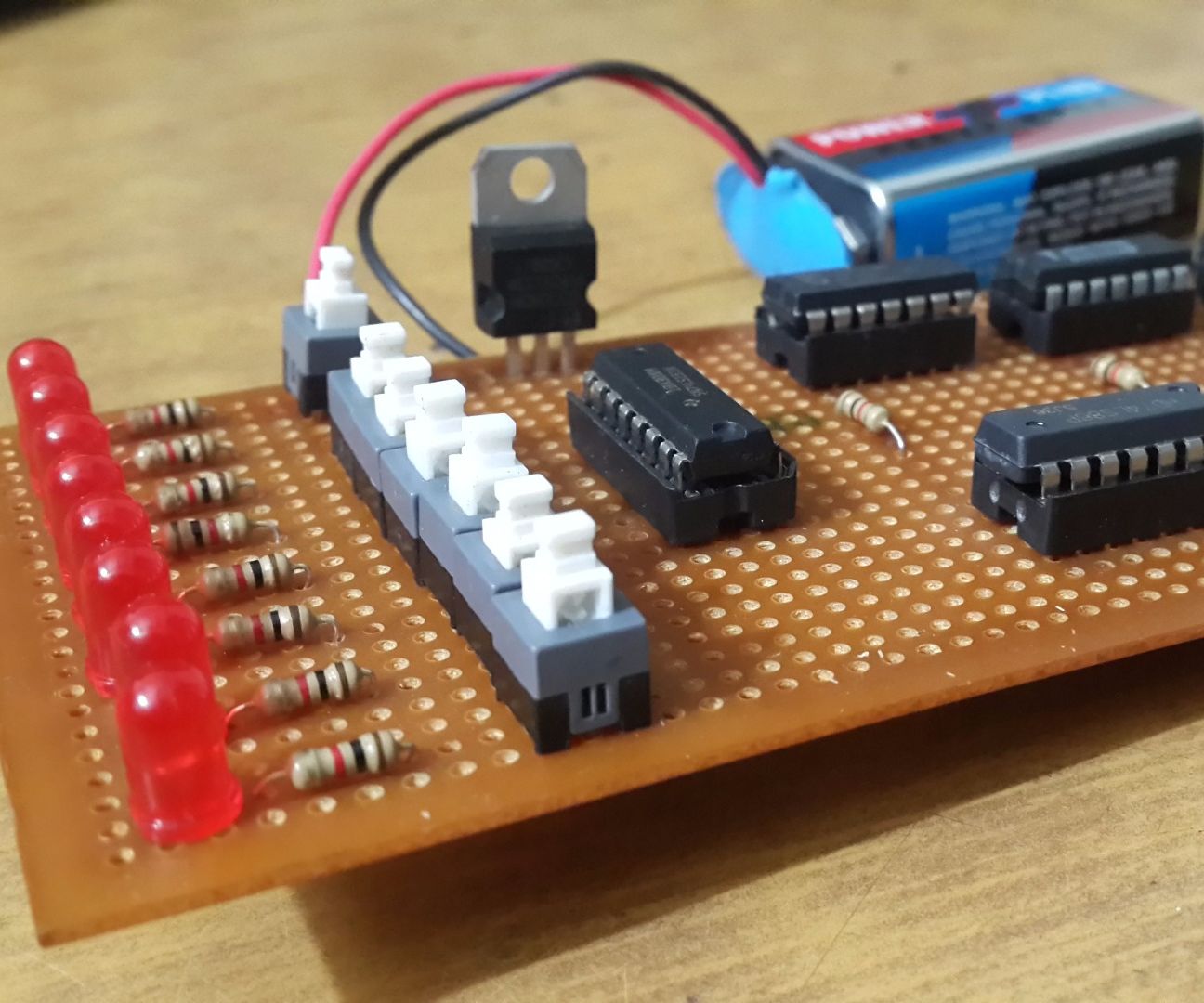

Logic Gates Demonstration Kit 5 Steps with Pictures Instructables

Application Of Logic Gates YouTube

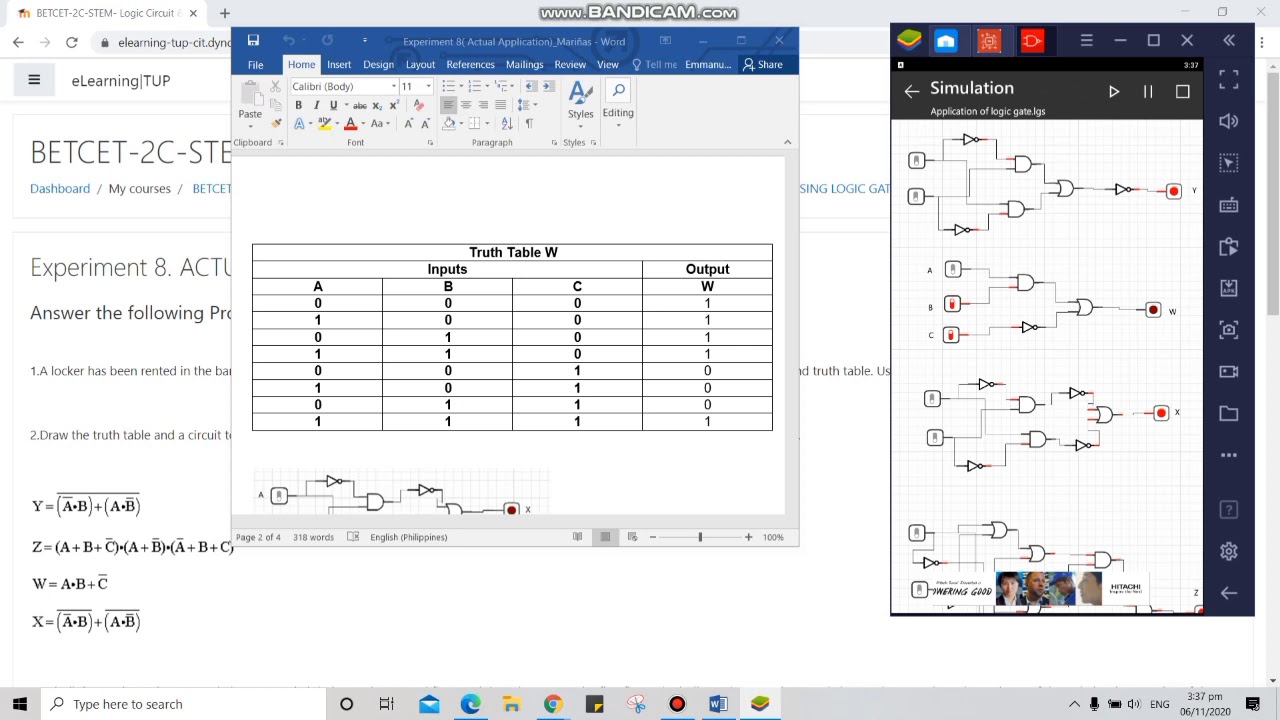

Solved Figure Shows An Application Of Logic Gates That Chegg
